Description

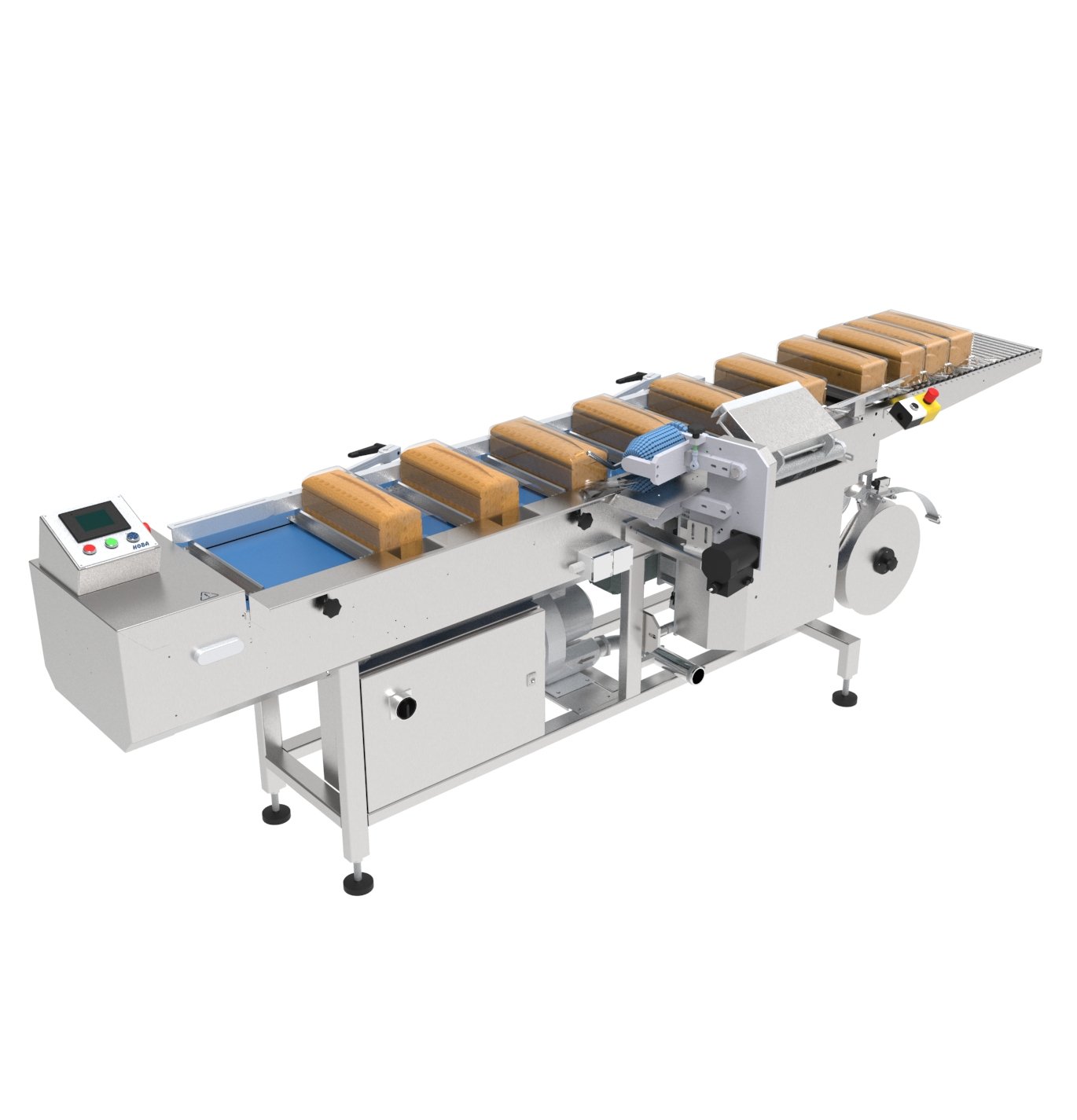

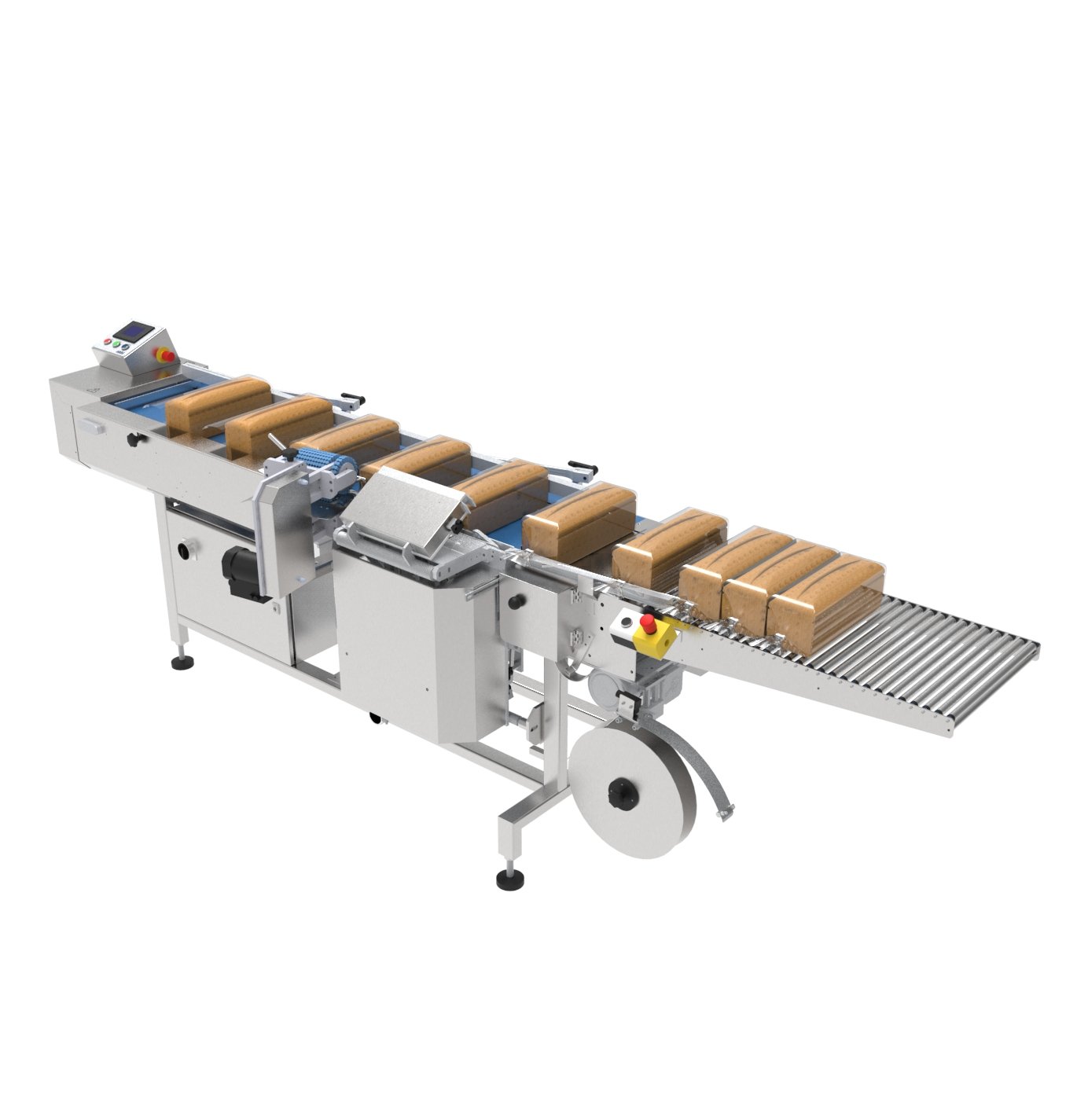

Fully automatic packaging line with a clipband closing system. To combine with a bread slicer for a semi-automatic line or to combine with a Bagloader HBS system for a fully automatic line. Horizontal or inclined, various lengths available.
various range of unsliced and sliced bread, as well as buns and rolls
length : 140 – 400 mm
width : 80 – 240 mm
height : 70 – 150 mm
clipband closure with wire thickness 0,6/0,7/0,8 mm
40 bags per minute, depending on the products, requirements and the operators working on the machine
electrical connection 400 Volt – 50 Hz
power input ca. 1,4 kW
pneumatic connection 6 bar (10 L/min)
Features
- Installed closing machine type CL for closing with clipband.
- Bagtensioner type HBT to smooth the bag before closing.
- Transportation of the products with pushers on a plastic plate.
- Standard buffer outfeed, free roller conveyor, total length 1000 mm.
Optional features
- Bagblower type HBB for manual packing of the products.
- Vacuumpump to remove excess air from the bag.
- Buffer belt instead of passive rollers.
- Extra 500 mm conveyor for the installation of a labelling machine.
- Stainless steel covers and frame.
- Date coder for printing on the closure.
